Architecture Overview#

App model#

@startuml participant BFabric participant Storage participant AppRunner participant App BFabric -> AppRunner: run(app) group dispatch app AppRunner -> App: dispatch(app) App -> BFabric: query BFabric -> App: response App -> AppRunner: "chunks.yml", "chunk1/inputs.yml", ... end loop for each chunk group prepare inputs AppRunner -> BFabric: query BFabric -> AppRunner: response Storage -> AppRunner: Copy Files end group process chunk AppRunner -> App: process("chunk1") App -> AppRunner: notify end group collect outputs AppRunner -> App: collect("chunk1") App -> BFabric: query BFabric -> App: response App -> AppRunner: "outputs.yml" end AppRunner -> Storage: Copy Files AppRunner -> BFabric: Save end @enduml

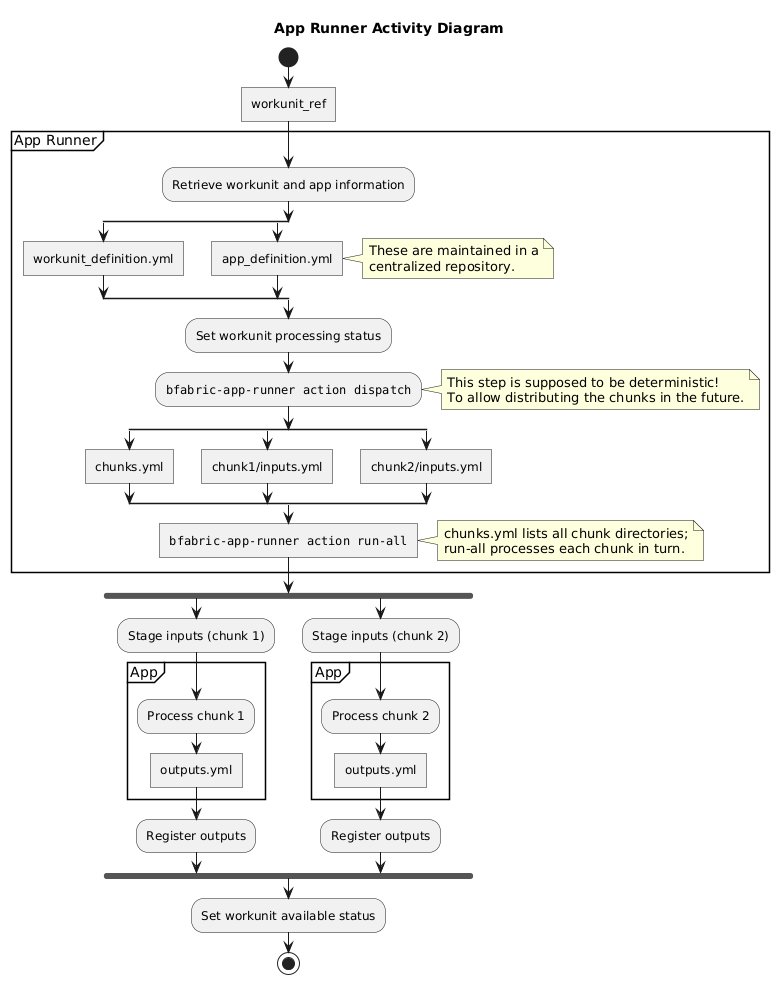

App runner activity diagram#

@startuml title App Runner Activity Diagram end title start :workunit_ref] partition App Runner { :Retrieve workunit and app information; split :workunit_definition.yml] split again :app_definition.yml] note right These are maintained in a centralized repository. end note end split :Set workunit processing status; :""app-runner app dispatch""; note right This step is supposed to be deterministic! To allow distributing the tasks in the future. end note split :tasks.yml] split again :task1/inputs.yml task1/params.yml] split again :task2/inputs.yml task2/params.yml] end split ' Unclear ' :Precondition check; :""app-runner chunk process-all""] } note right The actual ordering will be decided here. tasks.yml declares task dependencies. end note fork :Stage inputs 1; partition App { :Run task 1; :outputs.yml] } :Register outputs; fork again :Stage inputs 2; partition App { :Run task 2; :outputs.yml] } :Register outputs; end fork :Set workunit available status; stop @enduml
